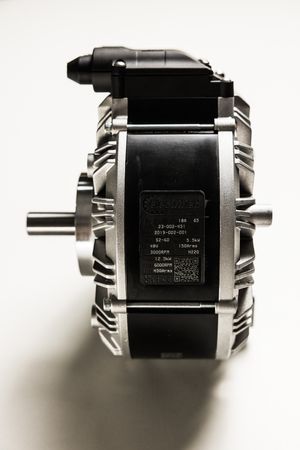

EA 193 Series
Our next generation permanent magnet electric motor technology achieves maximum performance in a compact package.
The game changing patented design will provide size, weight and performance benefits for a whole host of applications from two-wheel to industrial.
The EA 193 Series is available as a 193-40 and 193-80 to meet different performance requirements.
Download 193-40 Spec Sheet Download 193-80 Spec SheetThe motor design is a big step change in IPM motor production compared to similar distributed wound motors.
We have also designed the motor architecture to maximise the automation potential, so it is fully optimised for high volume production.
Our unique patented design will provide size, weight and performance benefits for a whole host of applications.
The EM 193 series has also been optimised for scalable, automated, high volume manufacturing.
Delivers maximum performance, power and efficiency
Light and compact
Through shaft capability
High power density
Optimised for repeatable scalable automated manufacturing
EA 193-40
| Nominal Voltage | Peak torque @450ARMs | Rated torque @150Arms | Peak power [s2-5] | Rated Power [s2-60] | Maximum speed | Motor weight |
|---|---|---|---|---|---|---|
| 48V | 63 Nm | 22.5 Nm | 12.8 kW | 5.5 kW | 7000 RPM | 11.4kg |
EA 193-80
| Nominal Voltage | Peak torque @650ARMs | Peak power [s2-5] | Rated power [s2-60] | Maximum speed | Motor weight |
|---|---|---|---|---|---|
| 80V | 133 Nm | 32 kW | 10 kW | 7000 RPM | 18.1Kg |

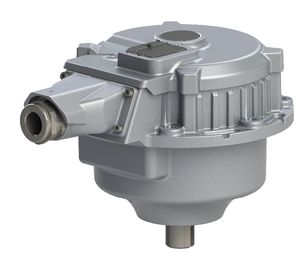

Deck E series
The Deck-E motors are the result of months of research and development.
This game-changing electric motor solution is set to provide significant benefits to lawncare applications.
Download Deck E6 Spec Sheet Download Deck E9 Spec SheetThis adaption of our core technology is brilliantly suited to lawncare applications. To ensure the motors can respond to the toughest environments, they have an impact resistant cable gland with industrial strain relief, as well as robust and rugged bearing design for high impact scenarios.
Our Deck E motors have the same core technology as our 193 Series, but are adapted for lawncare applications.
They can be fully integrated into a wide-range of OEM lawncare vehicles with their redesigned IP69K end cover.
Serviceable shaft and bearings reduce long-term maintenance costs.
Impact resistant cable with rugged strain relief
Light and compact
Serviceable shaft and bearing with high load and shock capability
Delivers maximum performance, power and efficiency
Optimised for repeatable, scalable automated manufacturing
DECK E6
| Nominal Voltage | Peak torque @150ARMs | Peak power [S2-5] | Rated Power [S1] | Maximum speed | Motor weight |
|---|---|---|---|---|---|
| 48V | 21 Nm | 6kW | 2.5 kW | 5000 RPM | 11kg |
DECK E9
| Nominal Voltage | Peak torque @200ARMs | Peak power [S2-5] | Rated Power [S1] | Maximum speed | Motor weight |
|---|---|---|---|---|---|
| 48V | 30 Nm | 9kW | 4.4 kW | 5000 RPM | 11kg |

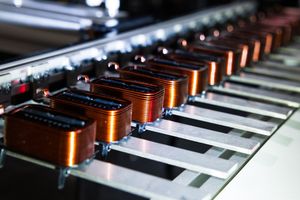

Automated
Manufacturing
Stator

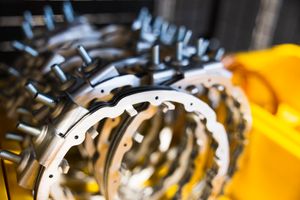

Over-Moulding
Stator Assembly
How to buy
At Electrified Automation we understand that each of our customers have a unique set of requirements.
That’s why we provide a flexible approach to purchasing our advanced electrification technology.
Whether you want a fully manufactured electric motor, a set of components to assemble in-house or to licence our manufacturing technology we will work with you to find the best solution to maximise production.
Get In Touch
Fully Manufactured
Under Licence
Manufacture In-Country
