Low voltage IPM motor
EA-193-40
The design of our 193 Series IPM motors has been fully optimised for high volume production.
Lloyd Ash, Innovation Director
- Compact
- Powerful
- Efficient
Delivers maximum performance, power and efficiency
Light and compact
Through shaft capability
High power density
Optimised for repeatable scalable automated manufacturing
Electrified Automation's IPM motors are fully certified IP69K to withstand the toughest operating environments. Both the motor and encoder are protected against high temperature and high pressure jet washes for increased reliability.
Our low voltage electric motor technology optimises the performance of a range of off-highway and two-wheel applications.
Our permanent magnet motor is smaller and uses less components and materials making it both ultra efficient and price competitive.
The output shaft can be driven from either end of the motor, giving customers the option for a brake to be added on the front or back.
We use comparably less active materials per kilogram to produce the same torque and power as similar IPM motors on the market.
Produced on our advanced automated manufacturing platforms achieves a quality motor every time.
Performance
- Model:
- EA-193-40-18A
| Nominal Voltage | 48V | 80V | 96V |
|---|---|---|---|
| Peak Torque | 70 Nm | 70 Nm | 70 Nm |
| Peak Power | 13.4 kW | 22.5 kW | 27 kW |
| Rated Power | 5.5 kW | 5.5 kW | 5.5 kW |
| Maximum Speed | 7000 RPM | 7000 RPM | 7000 RPM |
| Motor Weight | 11.4 kg | 11.4 kg | 11.4 kg |
| Specifications | Download 48V Spec Sheet | Download 80V Spec Sheet | |
| Mechanical Interfaces | Request a CAD file | Request a CAD file |

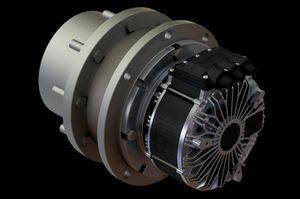

EA-193-40 Solutions
